OCPP Integration Daze Chargers
Prerequisites
-
For the OCPP configuration, it is necessary to first create a network and add the chargers to the said network.
-
The entire procedure requires an active internet connection of the Dazebox/Duo/Urban or a bluetooth connection.
All Daze charger models
Please follow the next steps to connect Daze chargers to the Sintio-Portal using OCPP configuration.

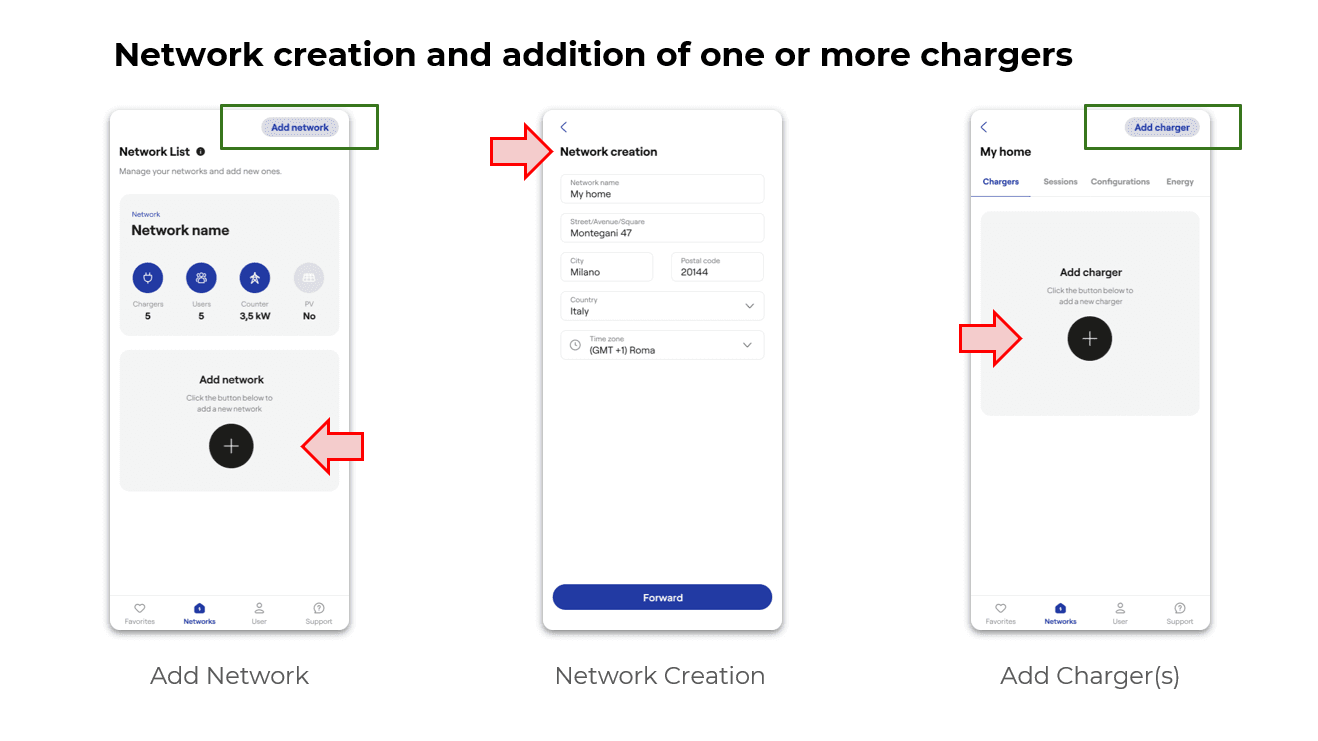

1. Network creation and addition of chargers
Please add a network as shown below. As soon as the network is configured add as many chargers you like.

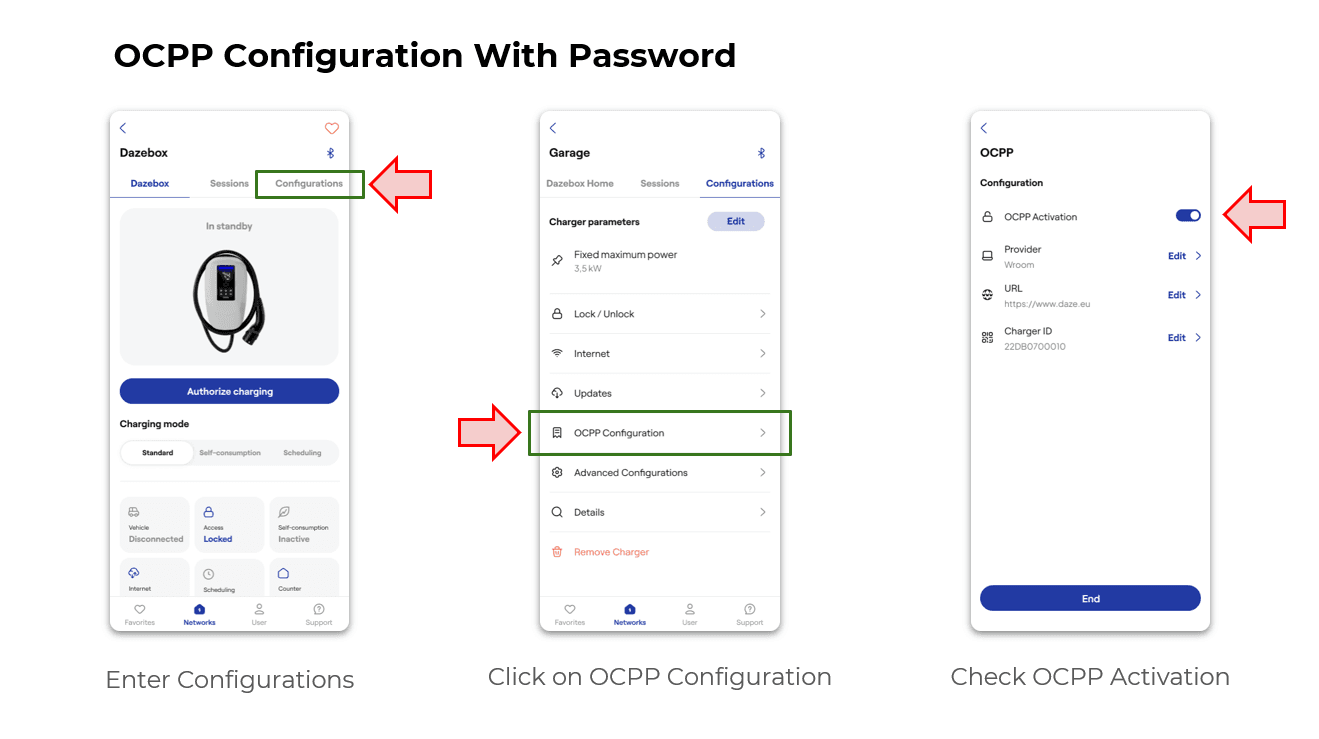

2. OCPP Activation
Enable OCPP connection by navigating to Configurations and select OCPP Configuration. Swipe the toggler to the right to activate OCPP as shown below.

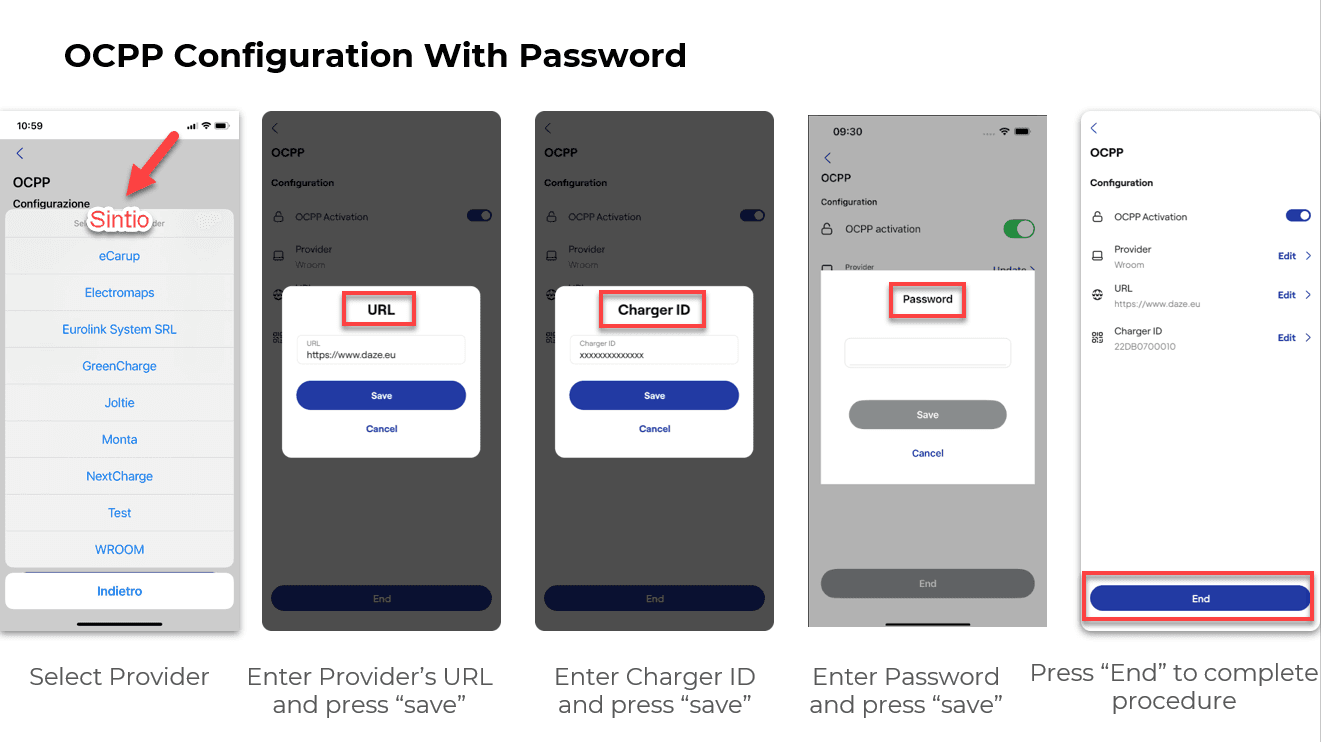

3. OCPP Configuration with password
Insert the OCPP credentials as shown in the table and the image. Here you can find an instruction to get the OCPP credentials.
| Setting | Input |
|---|---|
| Provider | Select Sintio |
| URL | wss://ocpp.sintio.app/ocpp16/NameOfYourOrganization/ |
| Charger ID | This name will be displayed on Sintio-Portal as name of the charger. |
| Password | OCPP-Password from Sintio-Portal |
If all values are inserted correctly, please press End to finish.
The charger will register to the Sintio Portal, and you can now configure settings. A guide for configuring the charging station can be found here
