OCPP Integration Wallbox Family AC SMART
Weidmüller AC Smart chargers are configured via webbrowser. Therefore determine the IP address of your wallbox and enter it in your webbrowser. For example http://192.168.0.8/ (opens in a new tab).

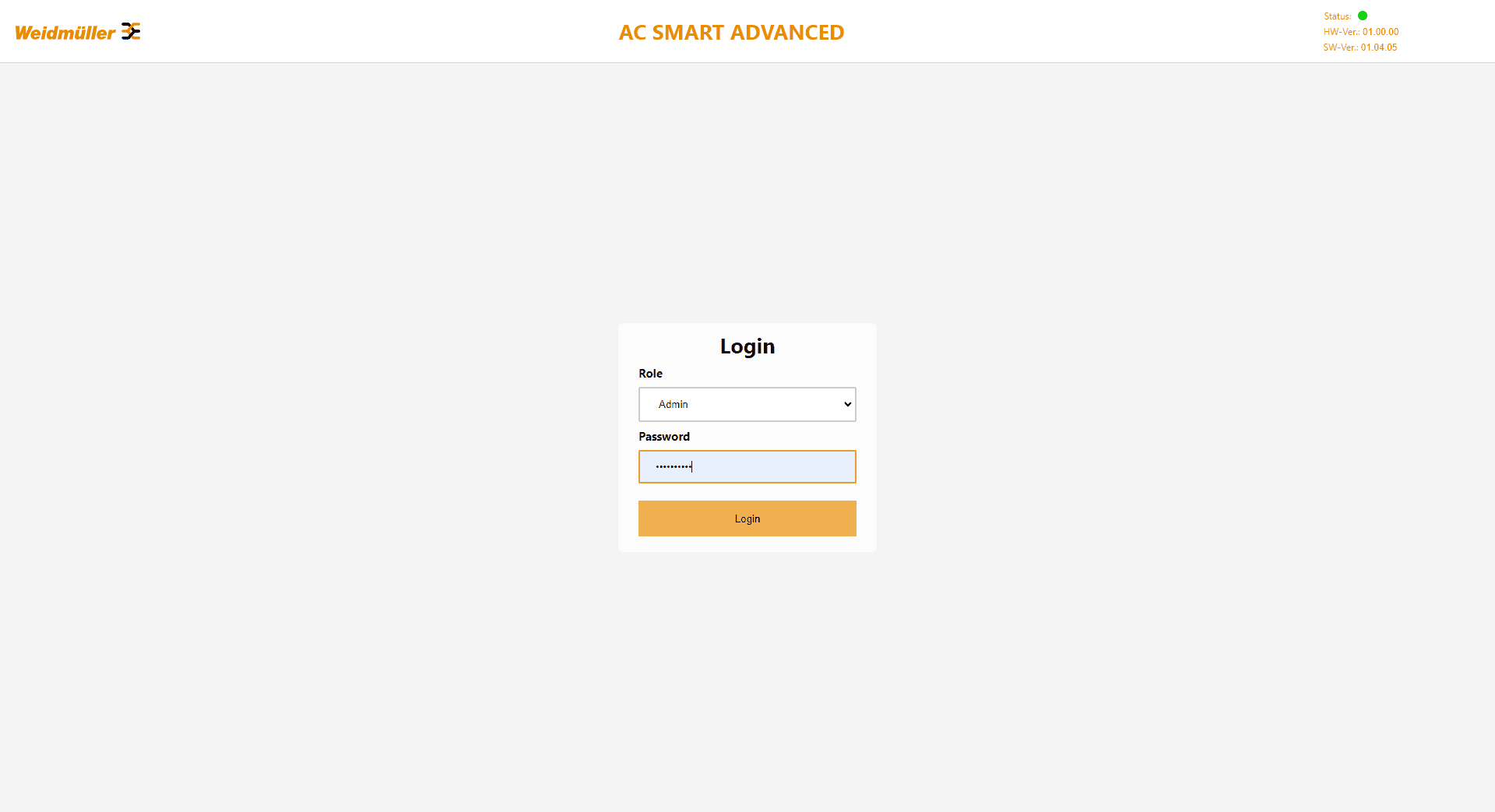

You will be prompted to enter your login credentials. Upon delivery of the Weidmüller wallbox, the following login credentials (the password may vary if you have changed it in the meantime) apply:
- Role:
Admin - Password:
zyVt45Nv0y

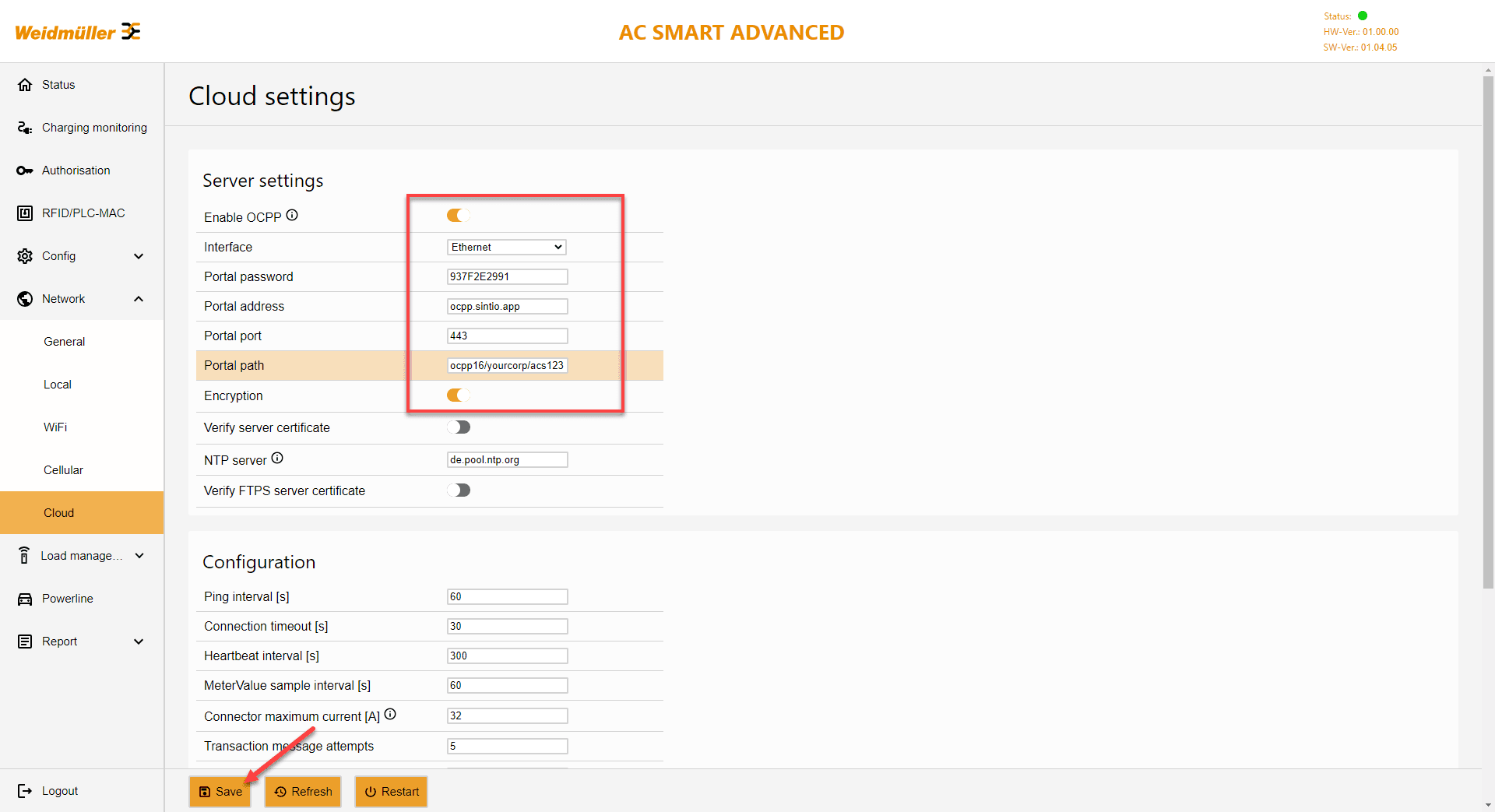

Network settings
Click Network and there the subnavigation Cloud. Make sure following settings:
- Enable OCPP:
on - Interface:
Ethernet - Password: The password from the Sintio-Portal OCPP settings
- Portal address:
ocpp.sintio.app - Portal port:
443 - Portal path:
ocpp16/[YOUR_ORGANIZATION_ID]/[YOUR_DEVICE_ID]whereby the Org ID is from the Sintio-Portal OCPP settings and the charger ID can be chosen by you. - Encryption:
on
The OCPP 1.6 protocol does support a password with up to 40 characters in the hex format (0-9 and A-F). However, Weidmüller does support a maximum of 21 characters. So make sure to have a password that is between 8 and 21 characters.

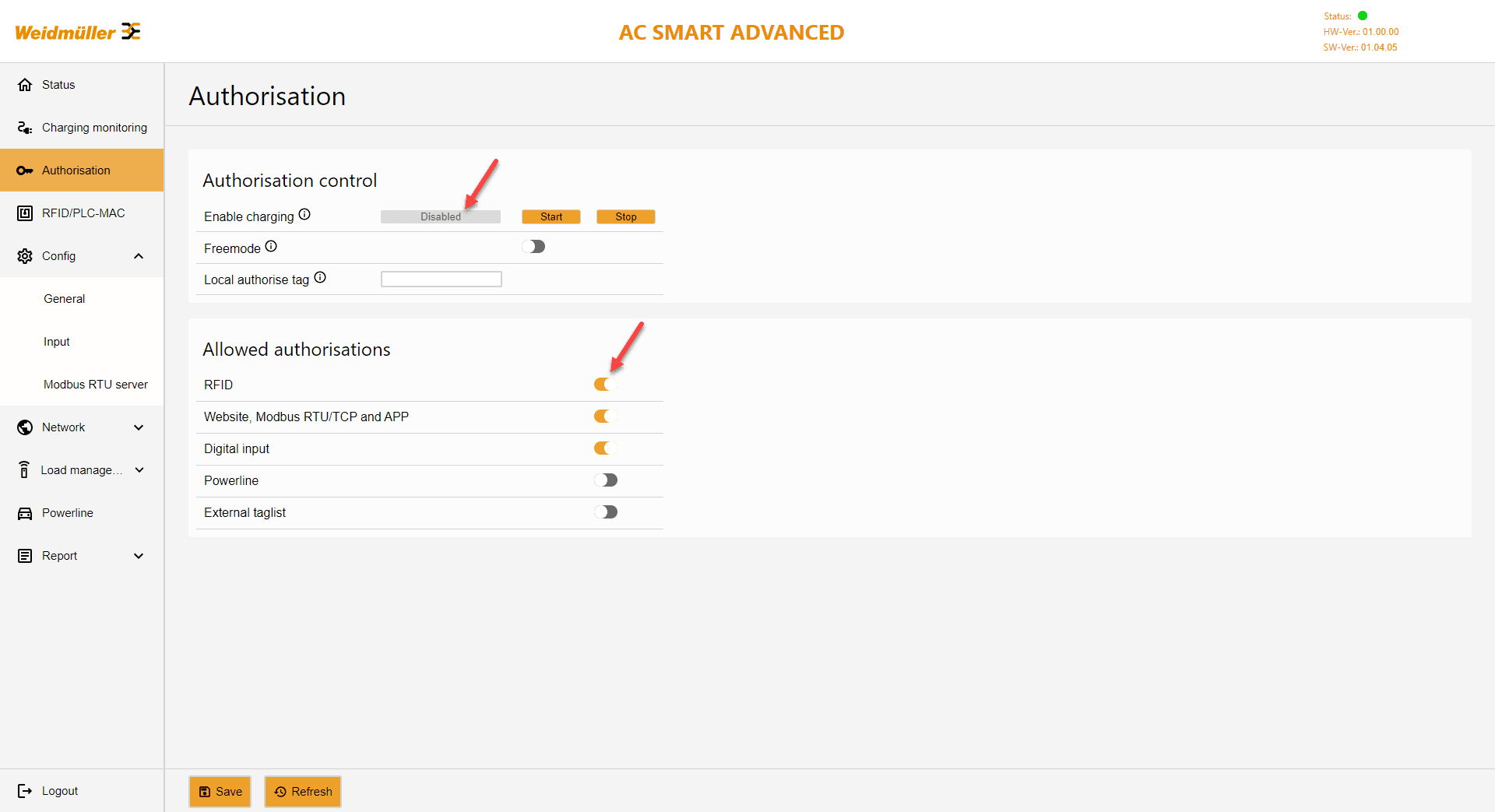

Authorization settings
In the main navigation click Authorization and make sure following settings in Authorisation control:
- Enable charging:
disabled - Freemode:
off - Local authorise tag: Leave empty
Furthermore check the Allowed authorisations settings:
- RFID:
on - Website, Modbus RTU/TCP and APP:
on
Serial number

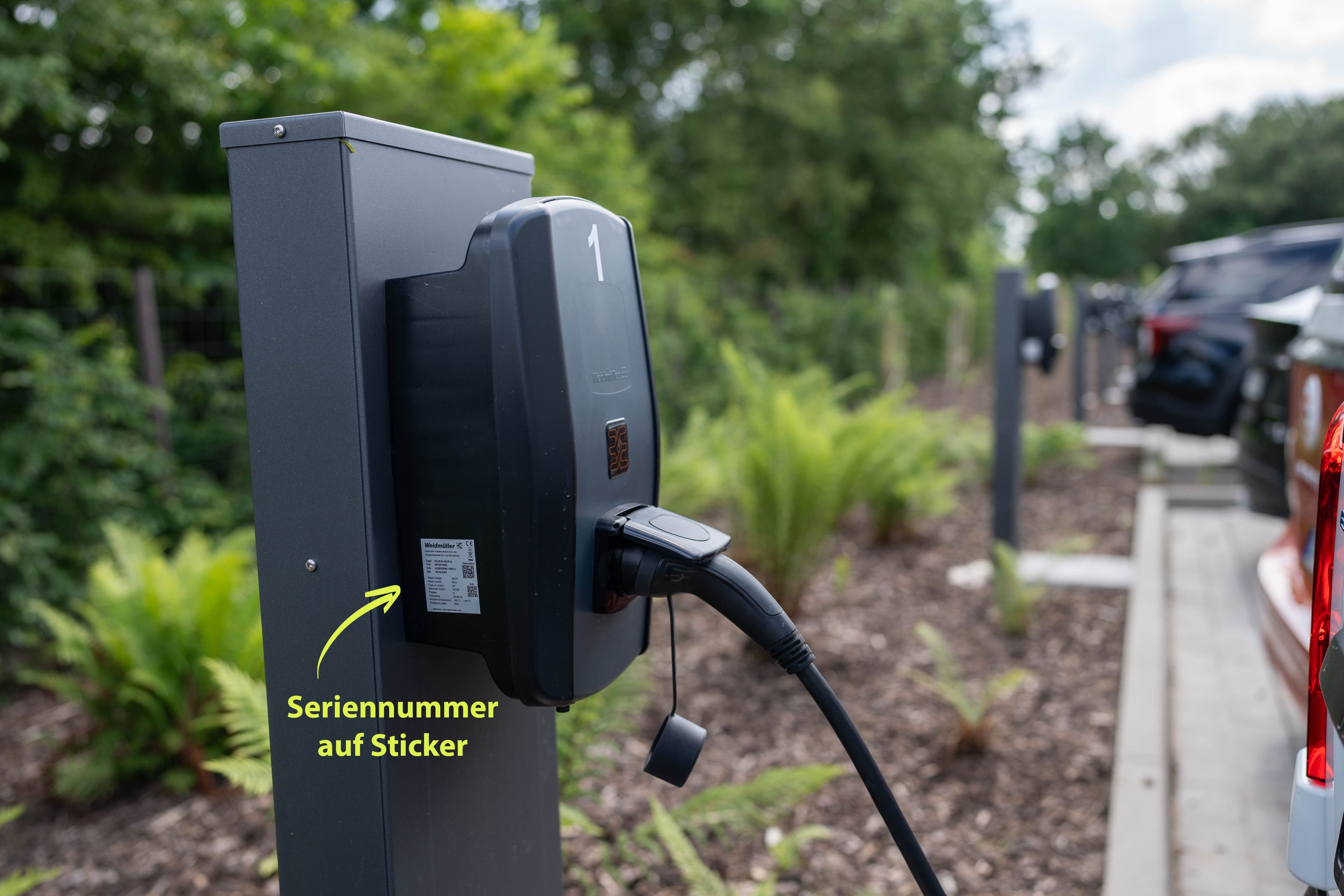

The serial number is located on the side of the charging station.
