OCPP Integration Easee Charging Stations
When you commission your first Easee installation, a manufacturer-specific password must be stored in the Sintio portal. For security reasons, you must contact support@sintio.ch, and we will configure it accordingly. This is only required for the first Easee installation.
Easee Up, Max, Core & Charge Pro

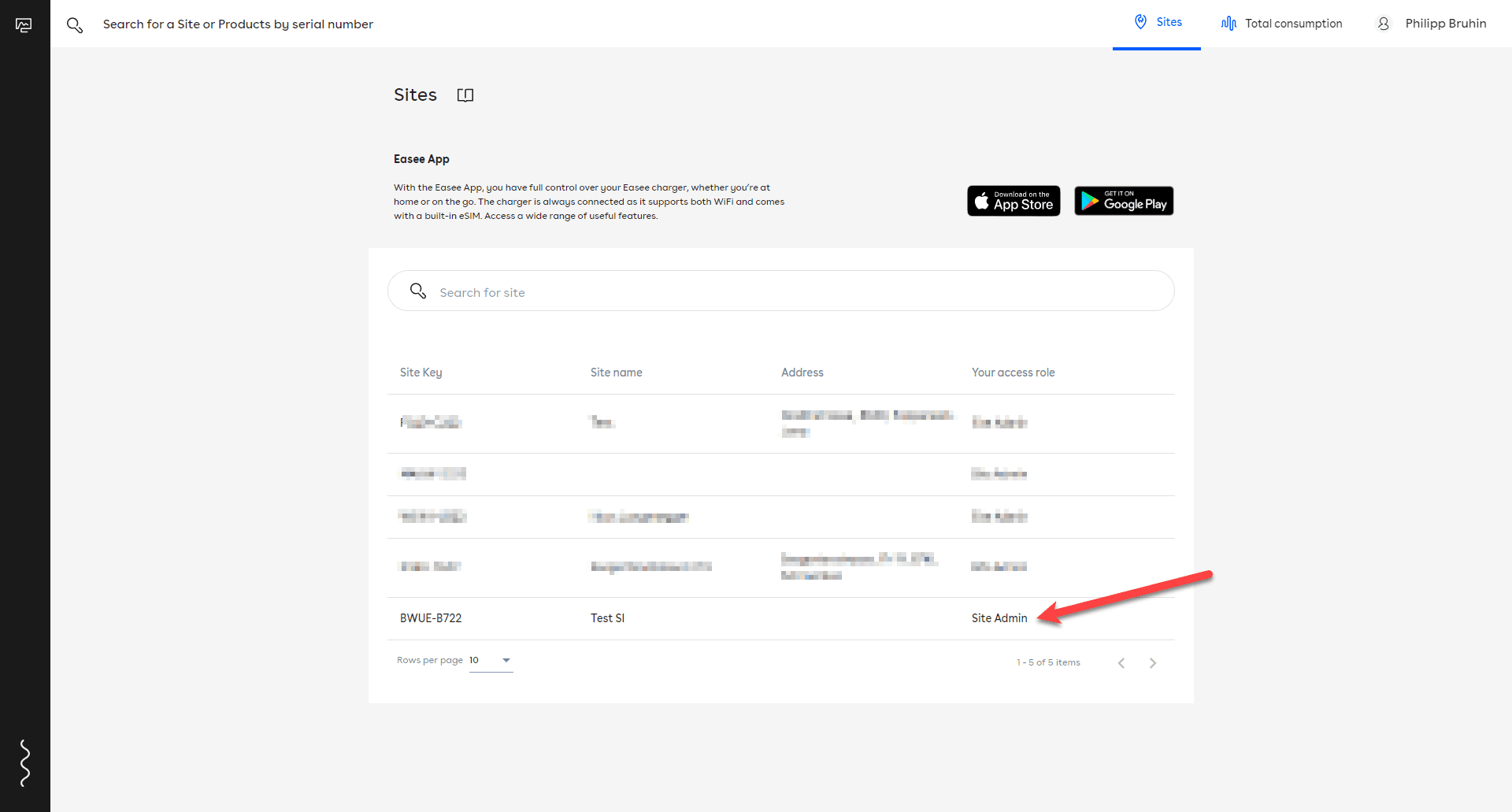

Open the following Link (opens in a new tab) to launch the Easee Web Portal. You will see a list of Easee charging infrastructures assigned to your user account.
Select the desired location where the charging station is installed.

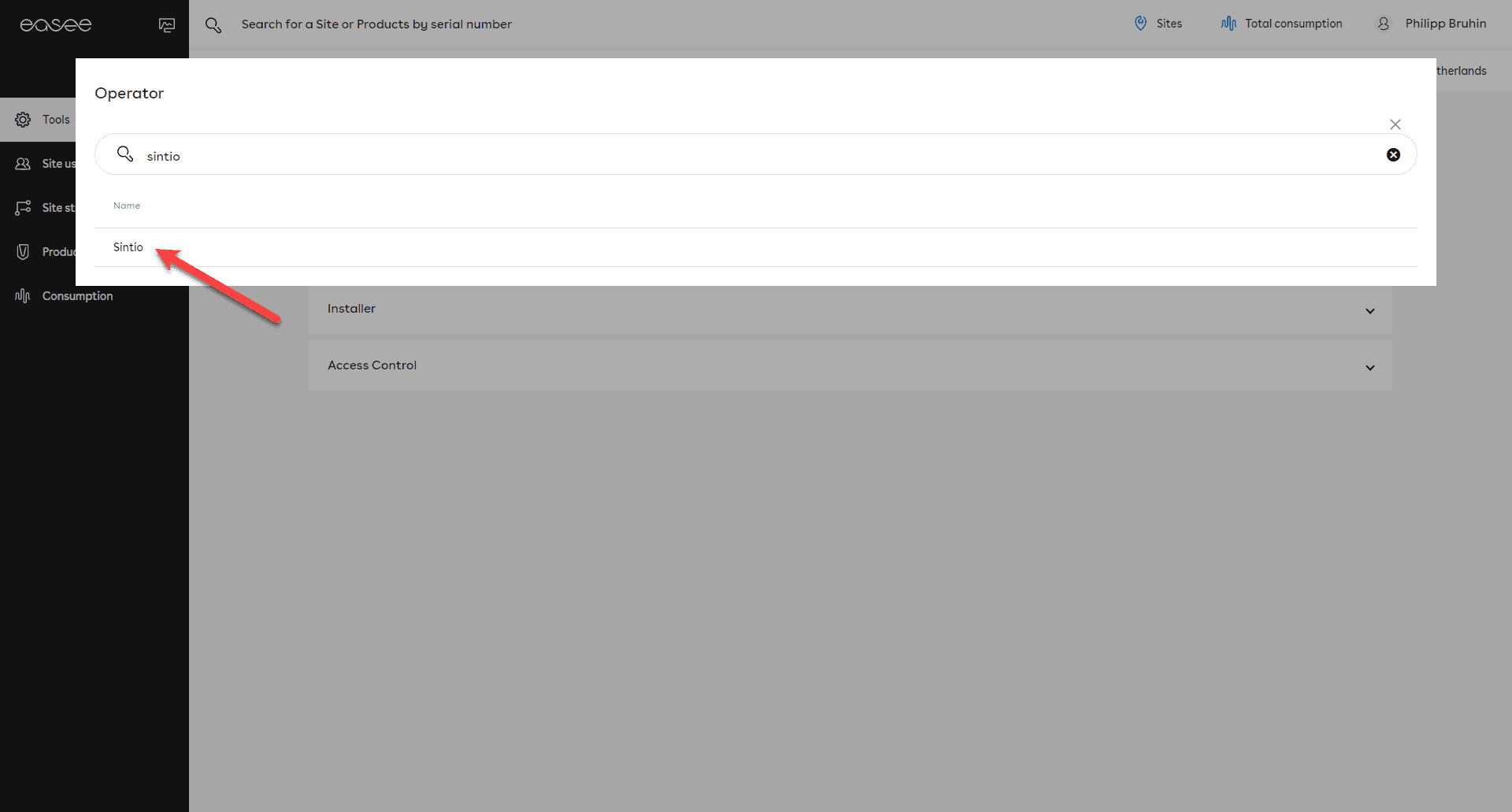

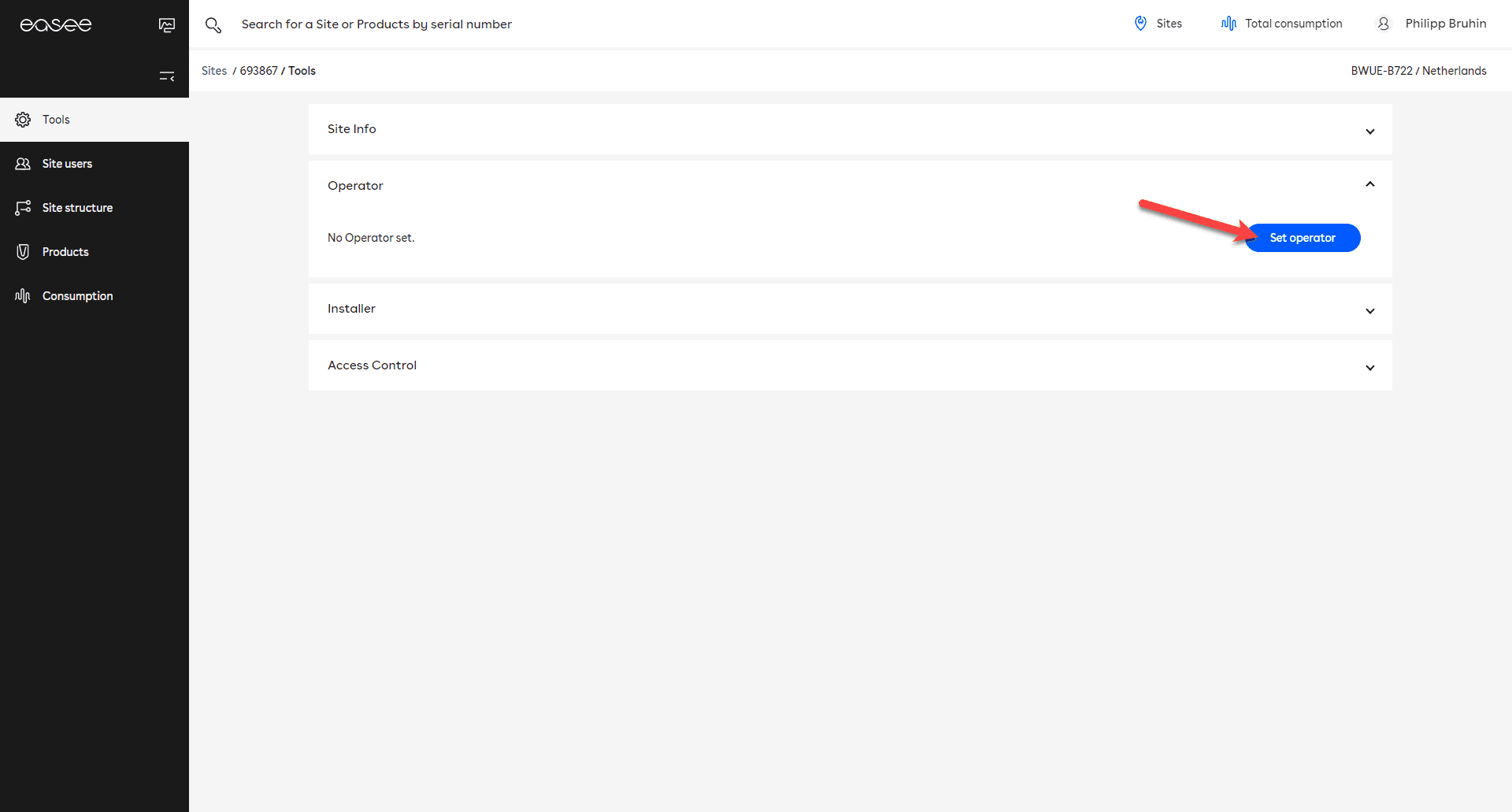

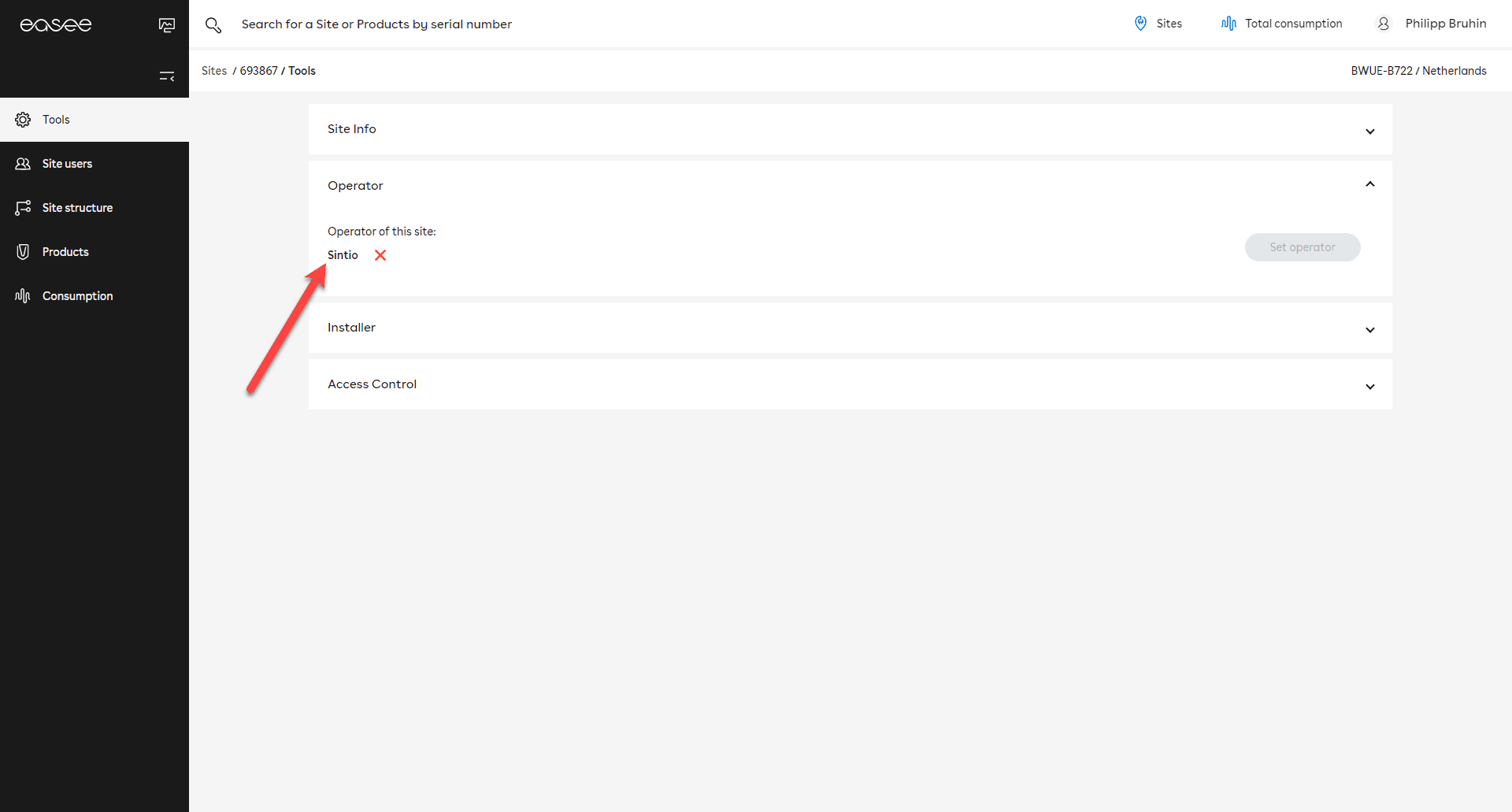

If the operator is not yet set to Sintio, please confirm by selecting “Yes”.
Select the corresponding charger and click “Edit”. Enter the relevant part of the OCPP URL from your Sintio organization.
| Input Field | Value |
|---|---|
| URL | /ocpp16/YourOrganizationName/ |
| Description | YourOrganizationName (optional) |
Only the appendix ocpp16/YourOrganizationName/ from the OCPP URL of your organization wss://ocpp.sintio.app/ocpp16/YourOrganizationName/deviceID is required. You can find more details about your OCPP configuration here.
Save your changes.
After approximately 15 minutes, the chargers will automatically appear in the Sintio Portal. You can speed up the process by restarting the relevant stations.
You can find a guide for configuring charging stations in the Sintio Portal here.
Serial number

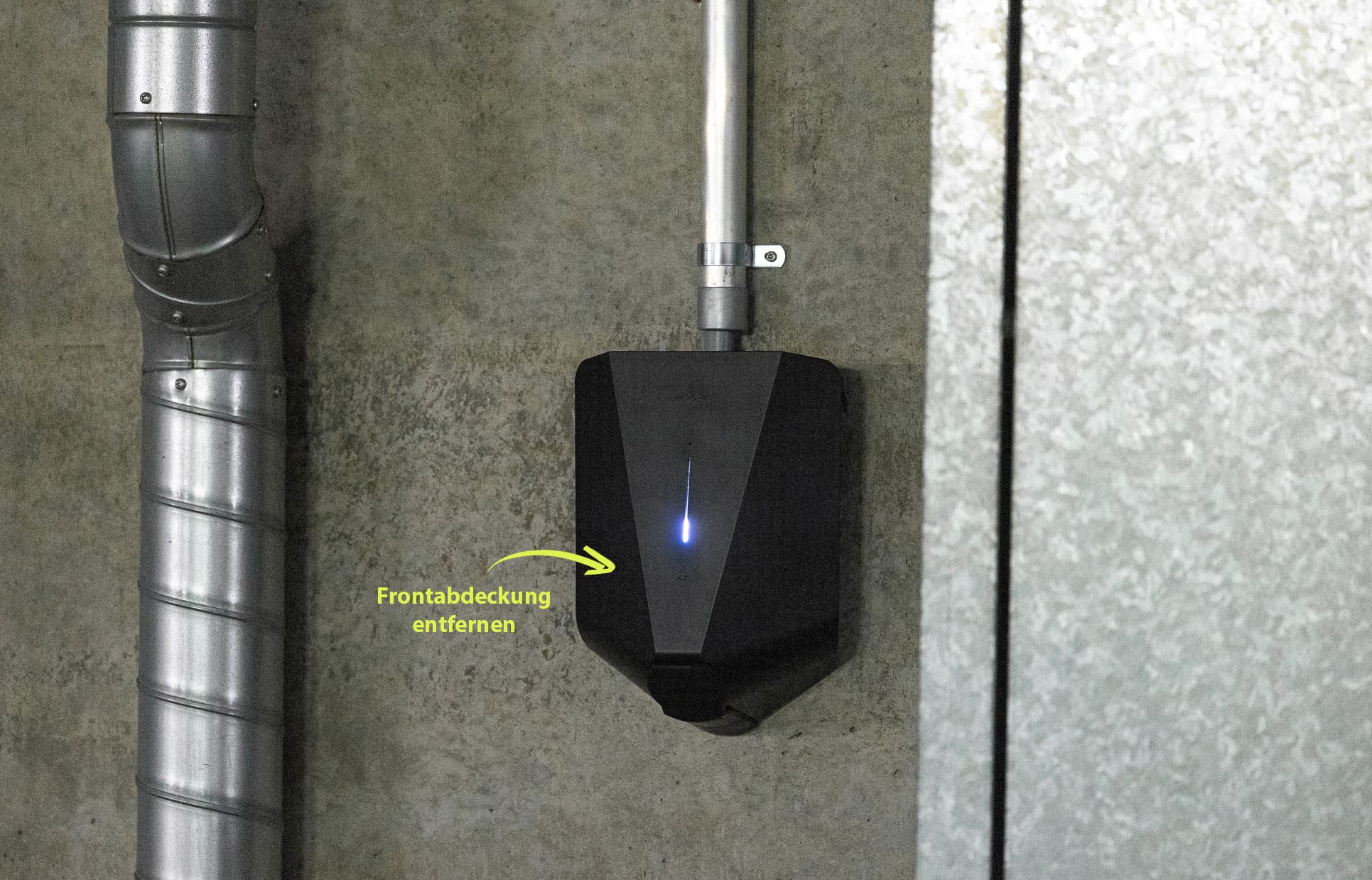

The serial number is located behind the front cover of the charging station above the Type 2 plug.
