OCPP Integration KEBA Charging Station

KEBA P30

KEBA P30 charging stations are configured via a web browser. First, determine the IP address of your wallbox, which is displayed on the station’s screen when it starts up. Enter the IP address in your web browser.

You will be prompted to enter your login credentials. When your KEBA station was delivered, you received a sticker (Wallbox Configuration Information). Use the WebUI default username & password:

Wallbox-Configuration-Information

On the web interface, navigate to the Configuration tab and scroll down to the OCPP section.

Enter the following data on the web portal:

  • Central System Adress: ocpp.sintio.app
  • Central System Port: 443
  • Central System Path: /ocpp16/{YourOrganization}
  • Central System Authentication Method: BasicAuthentication
  • Authorization Key: OCPP Password

Serial number

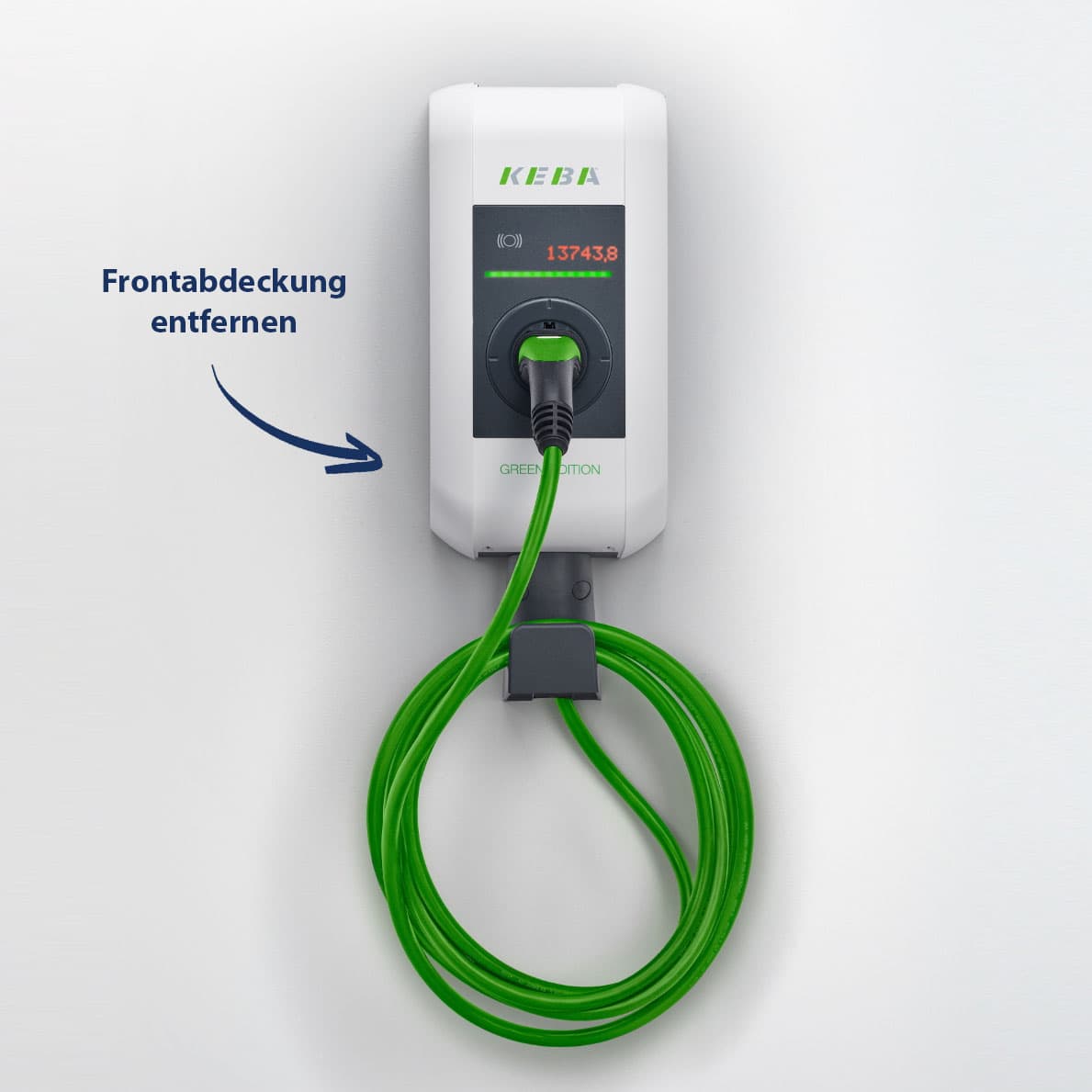

The serial number is located behind the front cover of the charging station below the plug.

Seriennummer

Animated-Seriennummer
